Jazzmaster HYBRID BRIDGE Pickup HOT 9.4kOhm A2 P90 / Humbucker Hand Wound FAT Tone
$39.32
$72.74

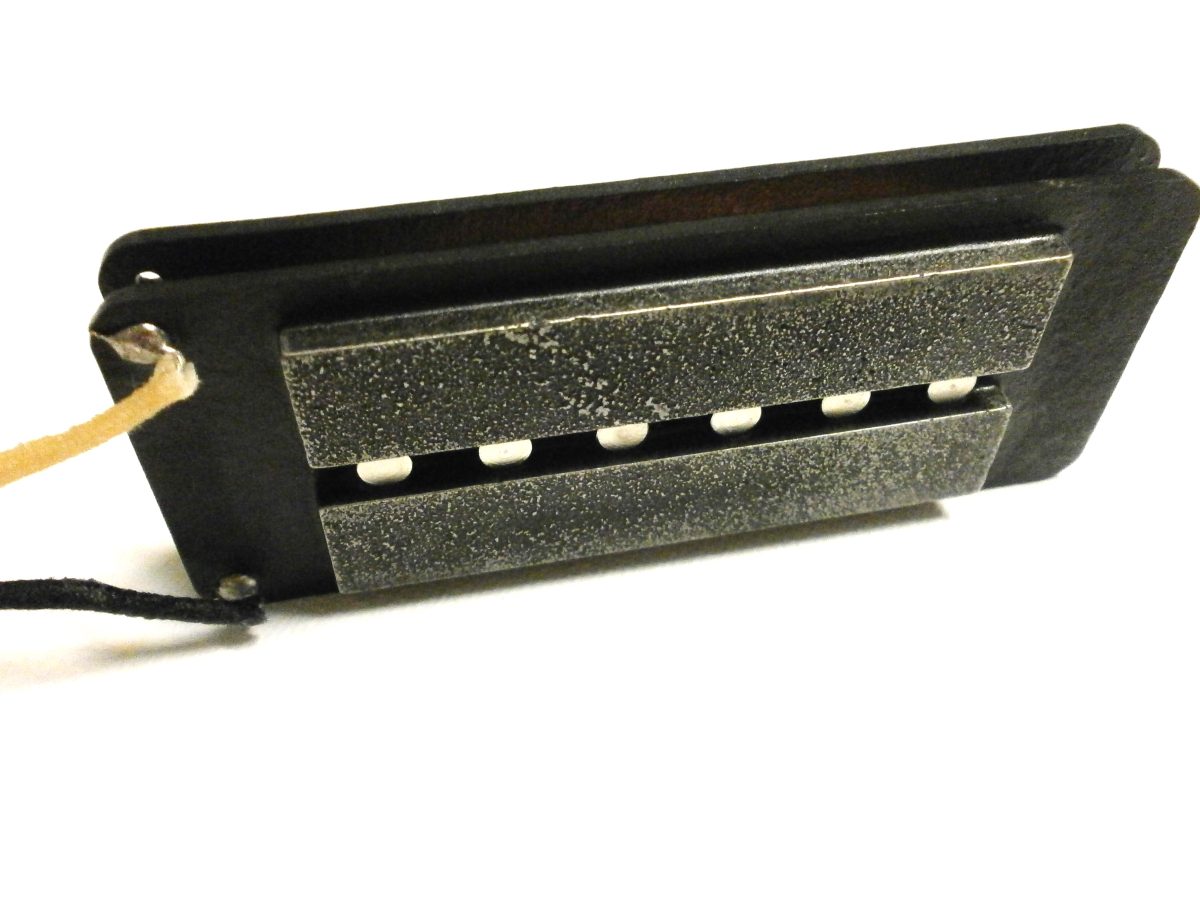

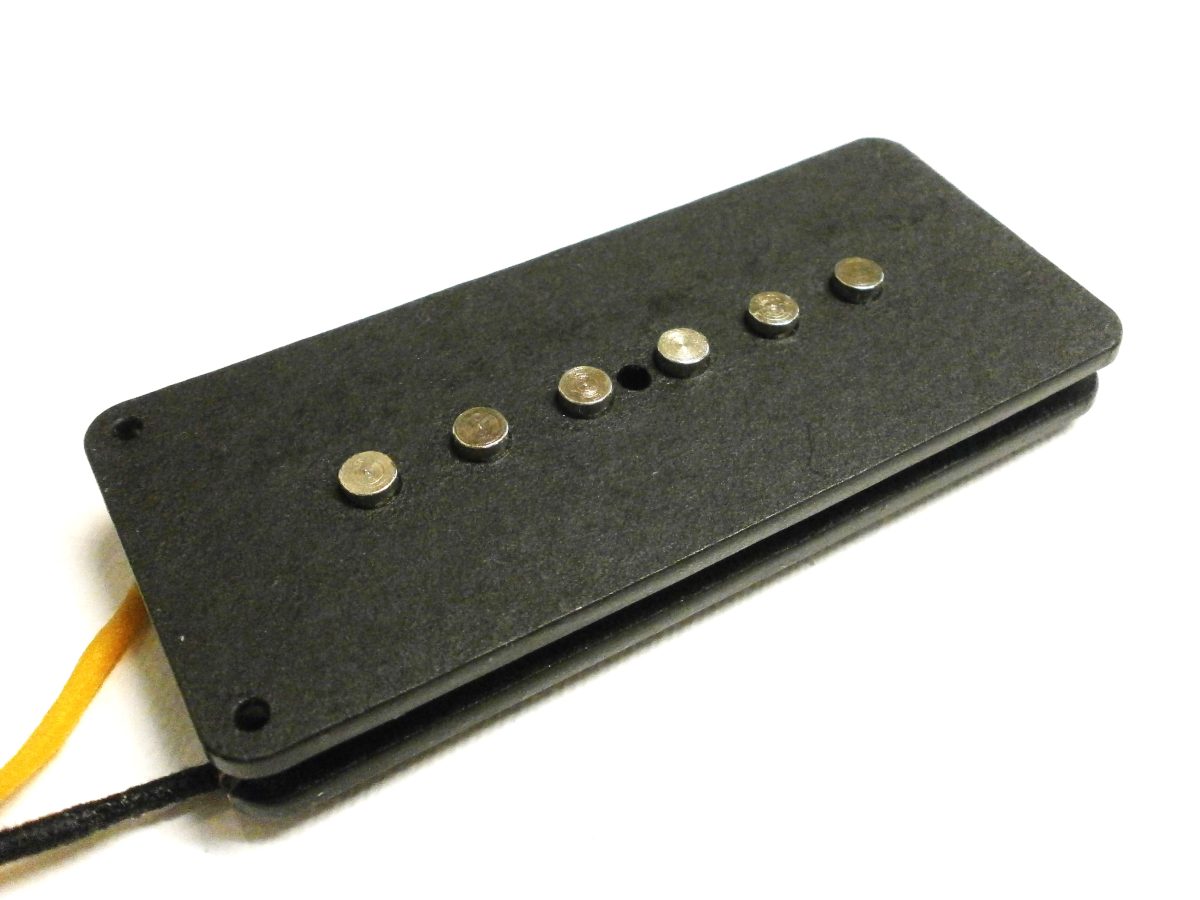

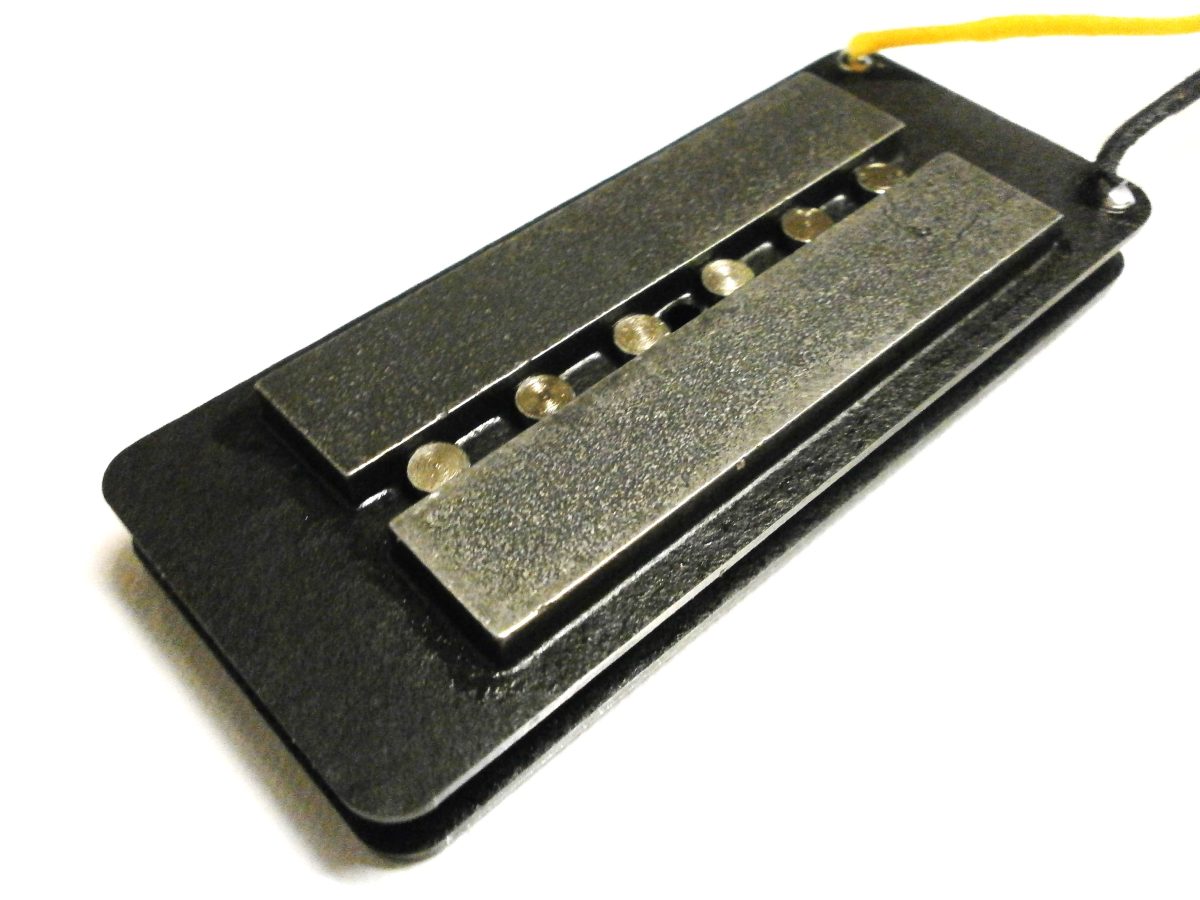

The Jazzmaster HYBRID pickup, designed for the bridge position, handcrafted by Q Pickups. This pickup is Jazzmaster pickup size, not P90 or humbucker size. It is kind of a hybrid of Jazzmaster, P90, and humbucker. Rather than traditional Alnico magnet rods used on classic JM pickups, it features nickel-plated steel slugs powered by two AlNiCo2 bar magnets. This design yields a tone that is both fatter and warmer, reminiscent of a P90 but with greater fullness and clarity, thanks to the steel slugs. The hot bridge measures at 9.4 kOhm, delivering some extra bite. A neck position variant is also available upon request. – hand wound with Elektrisola AWG42 wire – vintage specs BLACK flatwork – correct vintage Jazzmaster coil dimensions – Nickel plated STEEL slugs – Alnico 2 rough BAR MAGNETS – wax potted in paraffin and bee`s wax – magnetic polarity is SOUTH UP / winding direction CW Pole spacing is 51.0mm (2.007 in.) on center. If you have any questions or need something a little different please let us know and we will work it out.
