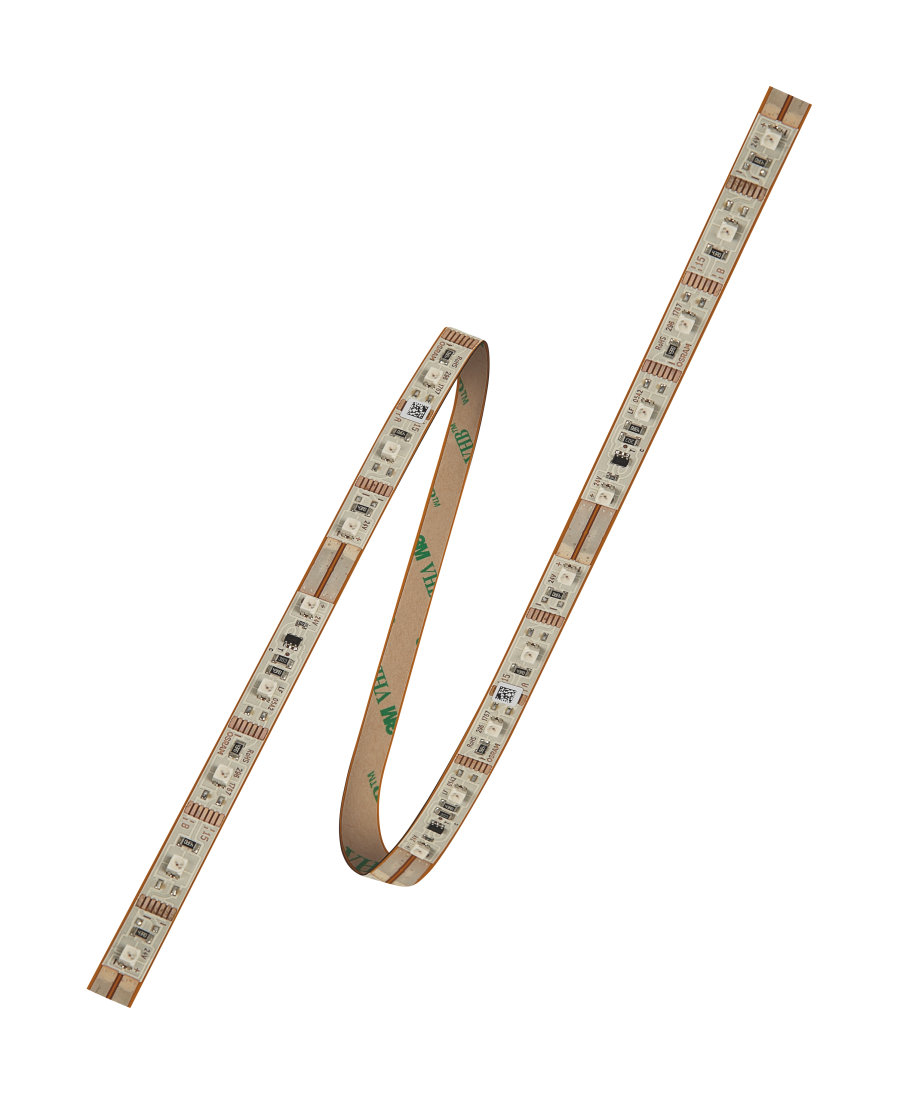

LF05A2-Y3 LINEAR light Flex ShortPitch

$ 91.76

Item Number: SX3100

Category:

Description LF05A2-Y3 LINEAR light Flex ShortPitch Nominal voltage – 24.0 V Type of current – DC Nominal wattage per meter – 8.3 W Rated wattage 83.00 W Input voltage range – 23…25 V Accidental reverse input voltage protection – up to 25 V Photometrical data Light color LED – Yellow Nominal dominant wavelength – 587 nm Luminous flex per meter – 110 lm Light color (designation) – Yellow Light technical data LED pitch – 20.0 mm Beam angle – 120 ° Rated beam angle (half peak value) – 120.00 ° Starting time – < 0.5 s Warm-up time (60 %) – 0.00 s LED module information Number of LEDs per meter – 50 Number of LEDs per smallest unit – 5 Maximum operable length – 10000 mm Dimensions & weight Length – 10000 mm Length – smallest unit 100.0 mm Width – 8.0 mm Height – 2.4 mm Product weight – 125.00 g Temperatures & operating conditions Performance temp. acc. to IEC 62717 – 25 °C Temperature range in operation at Tc point – -20…75 °C Ambient temperature range – -20… 50 °C Temperature range at storage -20…85 °C Lifespan Rated lamp life time – 50000 h Nominal lamp life time – 50000 h Lumen main.fact.at end of nom.life time – 0.70 Capabilities Lowest bending radius – 20 mm Certificates & standards Energy consumption – 92 kWh/1000h Standards – CE; ENEC 10 VDE/EAC/UL Recognized component according UL 8750 Type of protection – IP00 Logistical data Commodity code – 940542319000 Related
