LF800S-G3-865-10 LINEARlight Flex ShortPitch
$ 99.10
Item Number: SX3100

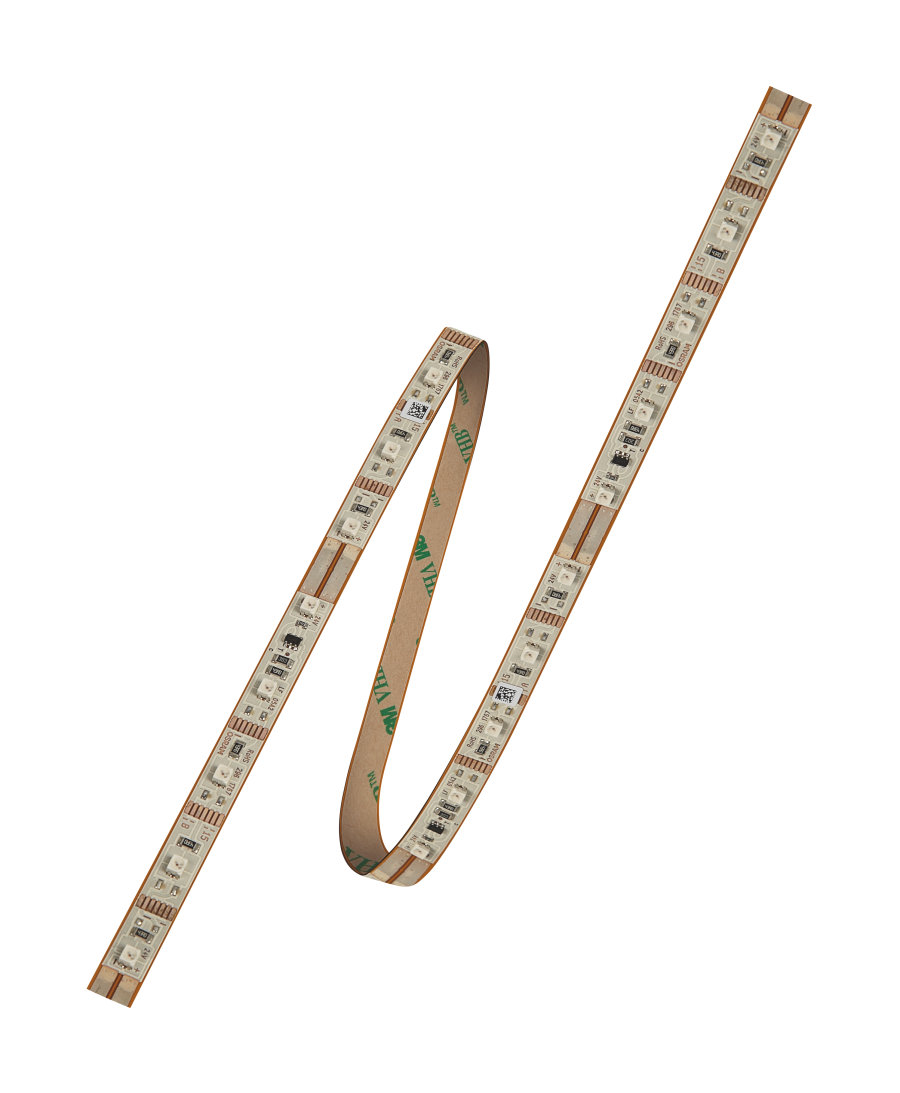

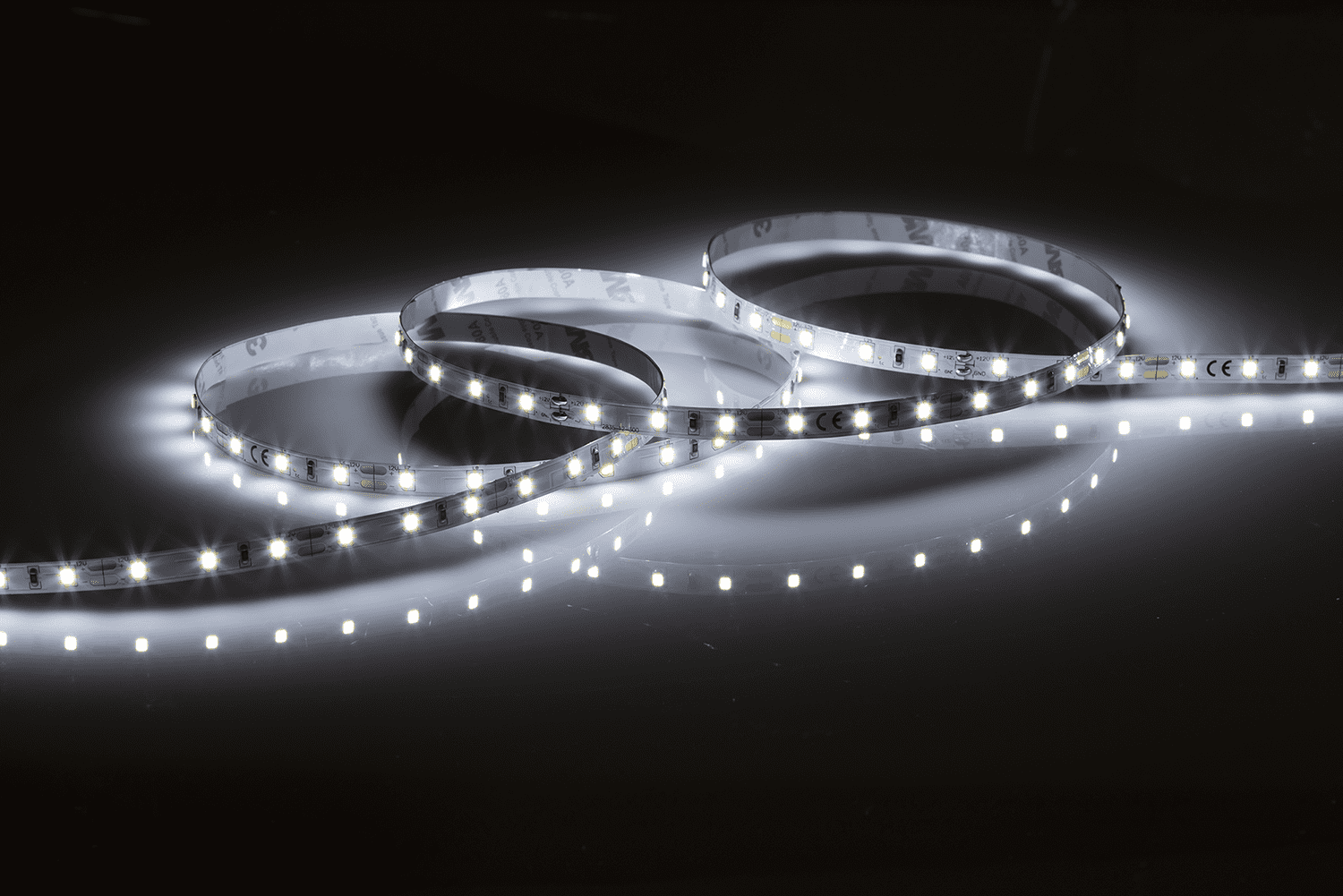

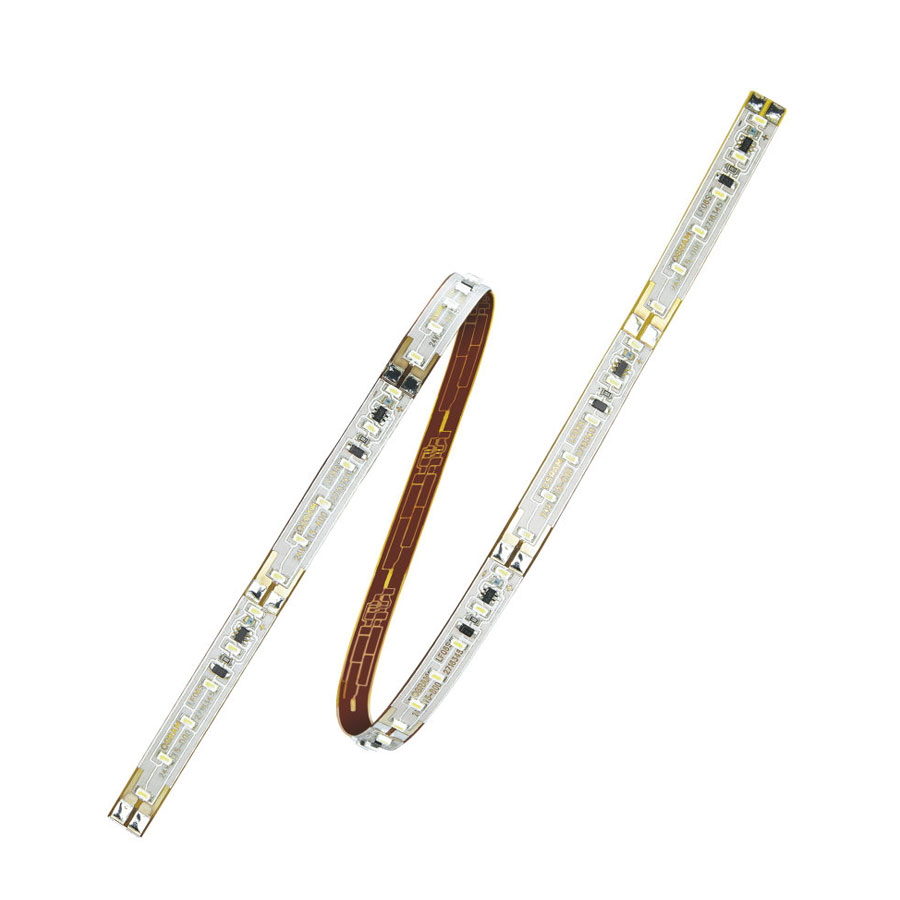

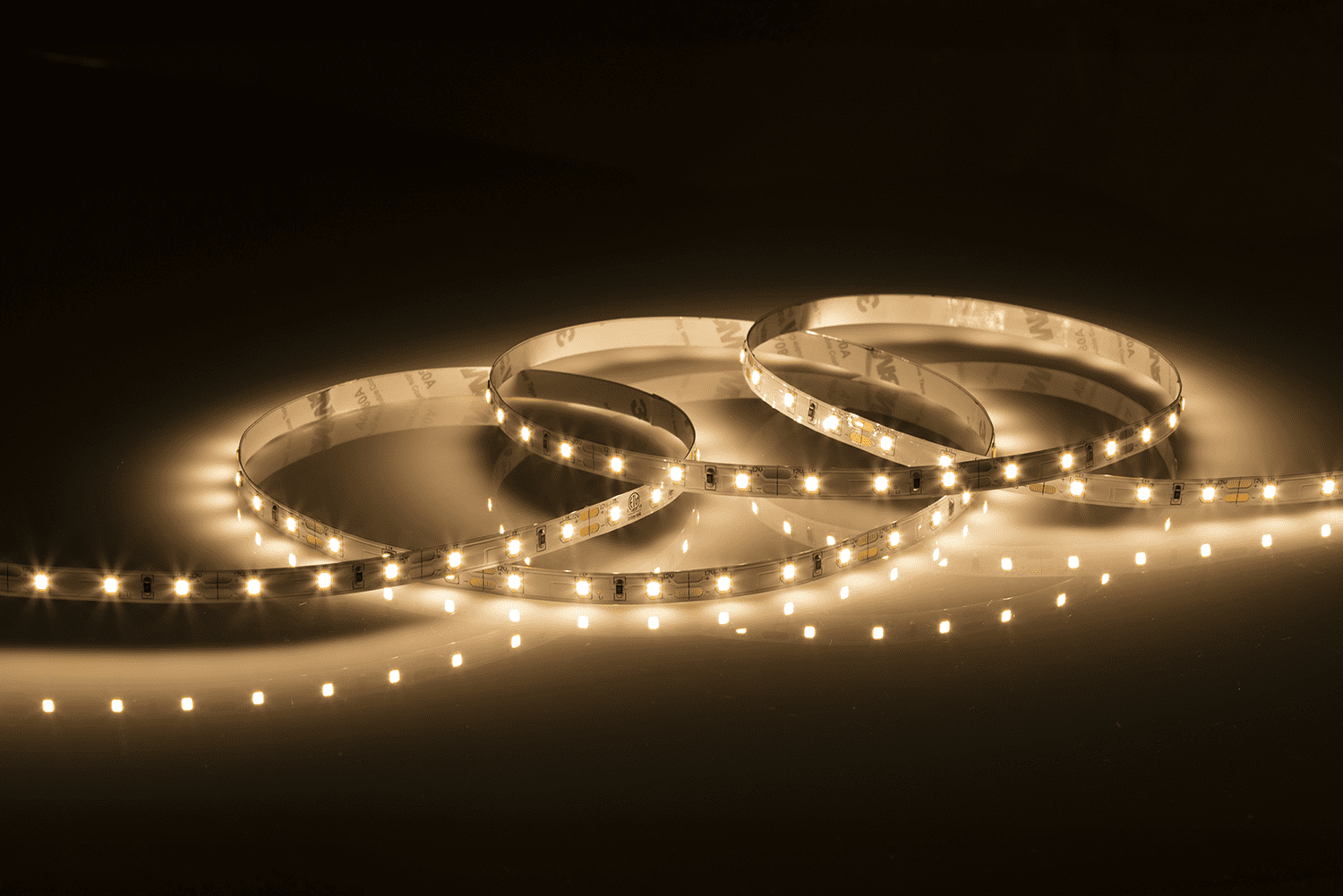

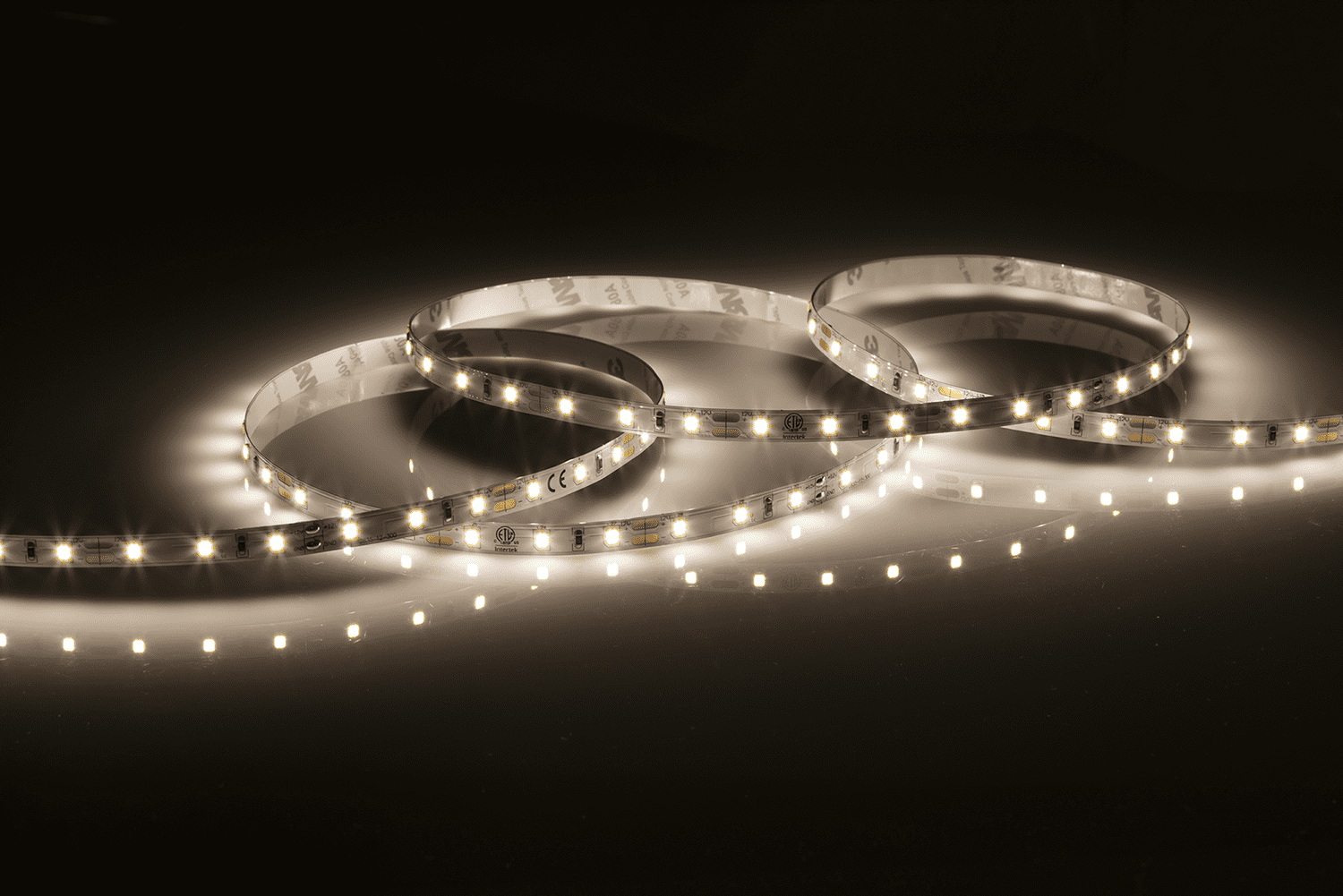

- Description Expand your lighting options with this flexible, cuttable LED strip that gives you dimmable fine white light of luminous flux up to 850 lm/m and module efficacy up to 99 lm/W. Its flexible, cuttable nature and ease of use make this LED tape highly versatile, and easy to design into original lighting designs and commercial lights. In particular, it is ideal for edge coupling, small coving, object integration, path lighting, contour accent lighting, signage, advertising, and lettering. A perfect match for OPTOTRONIC electronic control gears. The LEDs in this module are closely spaced, and the tape is easy to mount and connect: often you can use just the adhesive strip on the back to fix it in place (alternatively you may choose to use the SLIM TRACK System) and if you choose to use the optional SLIMCONNECT System G2, you can connect modules without tools. Product family benefits: Color consistency up to 2 SDCM on the entire light strip thanks to Single-bin technology Color rendering options Ra 80 and 90 Service lifetime (L80/B10) up to 60000 h LM79 and LM80 compliant Embedded constant current regulators No solder joints on circuit board Flexible and cuttable LED strips Dimmable (with suitable PWM dimming methods) Areas of application: For high-end applications with dedicated equipment and accessories Equipment / Accessories: Flexessories are a complete set of aluminum channels with diffusers and lenses Connectors quick-and-easy toolless installation with SLIMCONNECTsystem G2 Drivers and dimmers wide selection of OPTOTRONIC 24 V DALI, DMX, and BLE Check for more detailed information on the specification sheets in the download section Note: The lifetime of LED FLEX is reduced if the LEDs get too hot. Heat management is best achieved with aluminum profiles. In addition to acting as a heat sink, profiles provide protection and can often enhance the appearance with the use of a diffuser. All high-powered LED flex requires heat management and this product should be used with a suitable profile. Technical data: EAN: 4052899953154 Nominal voltage: 24.0 V Type of current: DC Nominal wattage per meter: 7 W Rated wattage: 70 W Input voltage range: 23-25 V Accidental reverse input voltage protection up to: 25 V Light color LED: White Color temperature: 4030 K Color rendering index Ra: >= 80 Luminous flux per meter: 800 lm Total useful luminous flux: 8000 lm Luminous efficacy: 114 lm/W Standard deviation of color matching: <= 3 sdcm Light color (designation): White LED pitch: 8.33 mm Beam angle: 120 Deg Rated beam angle (half peak value): 120.00 Deg Starting time: < 0.5 s Warm-up time (60 %): < 0.50 s Number of LEDs per meter: 120 Number of LEDs per smallest unit: 6 Length: 10000 mm Length – smallest unit: 50.0 mm Width: 8.00 mm Height: 1.40 mm Product weight: 103.60 g Performance temp. acc. to IEC 62717: 45 C Temperature range in operation at Tc point: -30 75 C Ambient temperature range: -30 50 C Temperature range at storage: -40 85 C Rated lamp life time: 60000 h Nominal lamp life time; 60000 h Lumen main.fact.at end of nom.life time: 0.70 Number of switching cycles: 15000 Dimmable: Yes Lowest bending radius: 20 mm Self-adhesive: Yes With connection set: Yes With end piece: No Energy efficiency class: A Energy consumption: 77 kWh/1000h Standards: CE; ENEC 10 VDE/EAC/UL Recognized component according UL 8750 Type of protection: IP00 Commodity code: 940540399000 Related
